T20

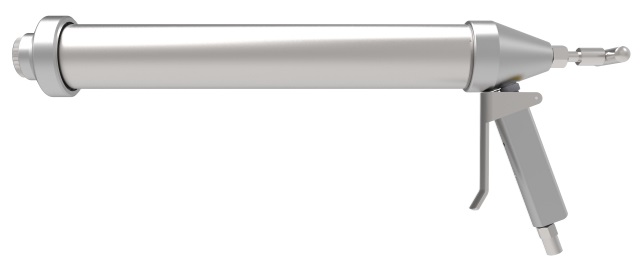

A 1-component pneumatic bead dispenser for 400/600mL sachets and bulk material.
Specifications:
- Weight: 1.68kg / 3.7lbs
- Frame Length: 368mm / 11.5in
- Maximum Thrust: 1.6kN
- Maximum Pneumatic Pressure: 8bar / 116psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminium
- Barrel Material: Steel
- Tool Component Approvals: CE
- Sachet/Bulk Capacity: 400mL, 600mL
- Viscosity: Low/Medium
- Standard Color: Grey
Customized versions on demand. Make an Enquiry
Features
- Bayonet mouth piece
- Durable steel barrel
- Forward air release
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Dispensing made simple
- For both sachets and bulk
- Fast, reliable and easy handling
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
Bulk 400-4000mL
| mm | inch | |
|---|---|---|
| l |
N/A |
N/A |
| a |
⊘
N/A |
⊘
N/A |
