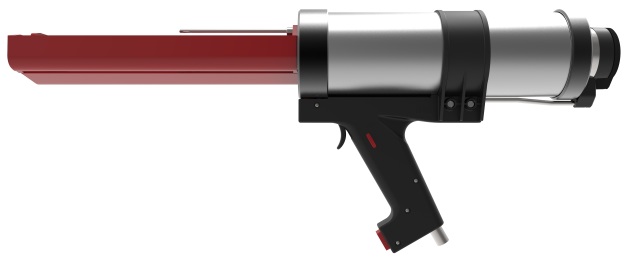

TS444 KX
A 2-component pneumatic bead dispenser for 365/385/585mL cartridges.
Specifications:
- Lightweight: 3.05kg / 6.80lbs
- Cartridge Holder Length: 278mm / 11in
- Maximum Thrust: 4kN
- Maximum Pneumatic Pressure: 8bar / 116psi
- Air Consumption: 40 litres/min
- Handle Material: Reinforced Nylon
- Barrel Material: Aluminum
- Cartridge Holder Material: Steel
- Tool Component Approvals: CE
- Cartridge Capacity: 365mL (12.8), 385mL (13.5oz), 585mL (20.6oz)
- Cartridge Ratio: 3:1
- Viscosity: Medium
- Standard Color: Black/Red
Customized versions on demand. Make an Enquiry
Features
- Quick exhaust
- Speed adjustment during operation
- Rapid reset/reload
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Prevents run-on
- Simple dispensing
- One hand pressure adjustment
- Gives you long worry free performance
Applications
|
Bonding |
|
Crack Repair |
|
Roofing |
|
Chemical Anchoring |
|
Sealing |
|
Solid Surface |
|
Water Proofing |
Compatible cartridges
MIXPAC J-System: 365mL 3:1
| mm | inch | |
|---|---|---|
| l |
171mm |
6.73inch |
| a |
⊘
54.3mm |
⊘
2.14inch |
| b |
⊘
33mm
|
⊘
1.3inch
|
| c |
89.3mm
|
3.52inch
|
MIXPAC ecopaCC: 600mL 3:1
| mm | inch | |
|---|---|---|
| l |
245mm |
9.65inch |
| a |
⊘
56mm |
⊘
2.20inch |
| b |
⊘
34mm
|
⊘
1.30inch
|
| c |
88.30mm
|
3.48inch
|
Compatible: 385mL 3:1
| mm | inch | |
|---|---|---|
| l |
171mm |
6.73inch |
| a |
⊘
54.4mm |
⊘
2.14inch |
| b |
⊘
32.6mm
|
⊘
1.28inch
|
| c |
90.0mm
|
3.54inch
|
Compatible: 585mL 3:1
| mm | inch | |
|---|---|---|
| l |
244mm |
9.61inch |
| a |
⊘
54.4mm |
⊘
2.14inch |
| b |
⊘
32.6mm
|
⊘
1.28inch
|
| c |
90mm
|
3.54inch
|
