TS471

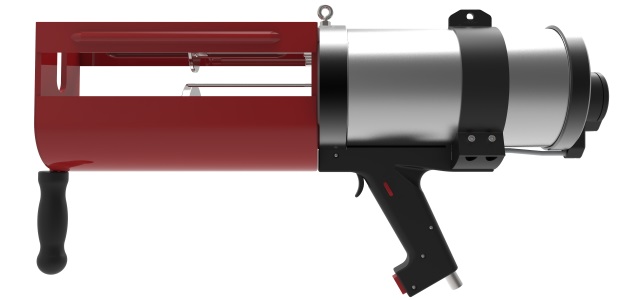

A 2-component pneumatic bead dispenser for 1400mL cartridges.

Specifications:
- Lightweight: 3.95kg / 8.8lbs
- Cartridge Holder Length: 298mm / 11.7in
- Maximum Thrust: 8.3kN
- Maximum Pneumatic Pressure: 8bar / 116psi
- Air Consumption: 40 litres/min
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE
- Cartridge Capacity: 1400mL (49.3oz)
- Cartridge Ratio: 3:1
- Viscosity: Medium/High
- Standard Color: Black/Red
Customized versions on demand. Make an Enquiry
Features
- Quick exhaust
- Speed adjustment during operation
- Rapid reset/reload
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Prevents run-on
- Simple dispensing
- One hand pressure adjustment
- Gives you long worry free performance
Applications
![]() |
Bonding |
![]() |
Crack Repair |
![]() |
Roofing |
![]() |
Chemical Anchoring |
![]() |
Sealing |
![]() |
Solid Surface |
![]() |
Water Proofing |
Compatible cartridges

Compatible: 1400mL 3:1
mm | inch | |
---|---|---|
l |
235mm |
9.25inch |
a |
⊘
96.4mm |
⊘
3.8inch |
b |
⊘
60mm
|
⊘
2.36inch
|
c |
157.5mm
|
6.2inch
|
