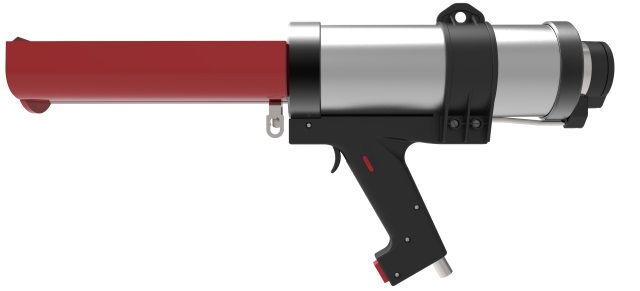

TS493 X / TS493 XT
A 2-component pneumatic bead dispenser for 600mL cartridges.

Specifications:
- Lightweight: 2.6kg / 5.6lbs
- Cartridge Holder Length: 235mm / 9.3in
- Maximum Thrust: 4kN
- Maximum Pneumatic Pressure: 8bar / 116psi
- Air Consumption: 40 litres/min
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE
- Cartridge Capacity: 600mL (21.1oz) (TS493 XT); 620mL (21.8oz) (TS493 X)
- Cartridge Ratio: 1:1
- Viscosity: Medium
- Standard Color: Black/Red
Customized versions on demand. Make an Enquiry
Features
- Air operated plunger retraction
- One hand pressure adjustment
- Anti-drip function
- Long life technology
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Quick cartridge exchange
- Simple dispensing speed adjustment
- Clean application
- Precise working
- Gives you long worry free performance
Applications
![]() |
Bonding |
![]() |
Crack Repair |
![]() |
Roofing |
![]() |
Chemical Anchoring |
![]() |
Sealing |
![]() |
Solid Surface |
![]() |
Water Proofing |
Compatible cartridges

Compatible: 600mL 1:1
mm | inch | |
---|---|---|
l |
215mm |
8.46inch |
a |
⊘
49.3mm |
⊘
1.94inch |
c |
98.5 mm
|
3.88inch
|

Compatible: 620mL 1:1
mm | inch | |
---|---|---|
l |
217 |
8.54inch |
a |
⊘
48mm |
⊘
1.89inch |
c |
95.5mm
|
3.76inch
|
